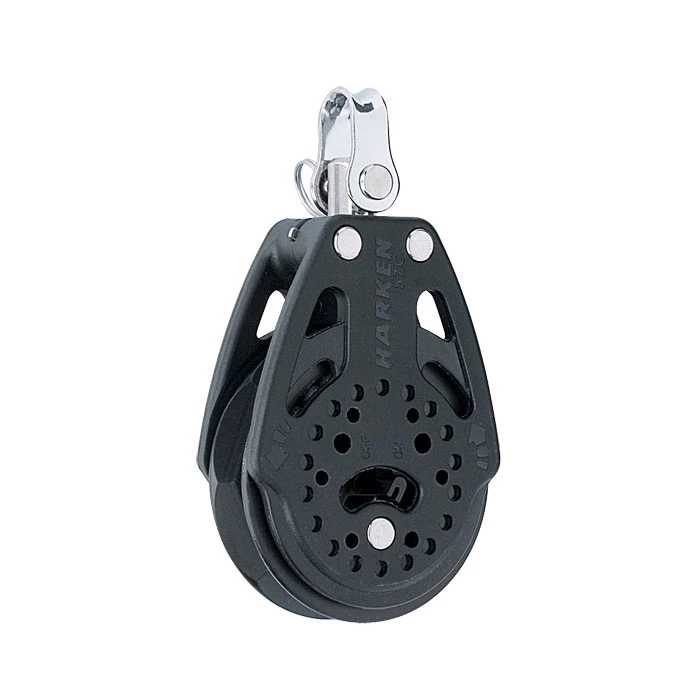

Carbo Ratchets allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing.
Nylon resin sideplates are densely packed with long-glass fibers for a compact block with a high strength-to-weight ratio. Machined aluminum sheaves are Hard Lube-anodized for strength and corrosion resistance. Eight facets hold line securely. Ball bearings, sheave, and sideplates are UV-stabilized with carbon black for maximum protection.
The 57 mm switchable ratchets provide precise on/off control with accessible, easy-to-operate on/off switches on both sides of the block.
For the ultimate system, mount a switchable ratchet in the cockpit and a boom-mounted Ratchamatic® directly above for double holding power in heavy air and a free- running mainsheet when it’s light.
Use for:
-
Main/jib/spinnaker sheets
-
Mainsheet fine-tune
-
Traveler controls
-
Genoa leads
-
Foreguy
-
Vangs
Specifications:
-
Sheave Ø (mm) – 57 mm
-
Length (mm) – 103 mm
-
Weight (g) – 85 g
-
Shackle pin Ø (mm) – 5 mm
-
Maximum line Ø (mm) – 10 mm
-
Maximum working load (kg) – 227 kg
-
Breaking load (kg) – 907 kg
