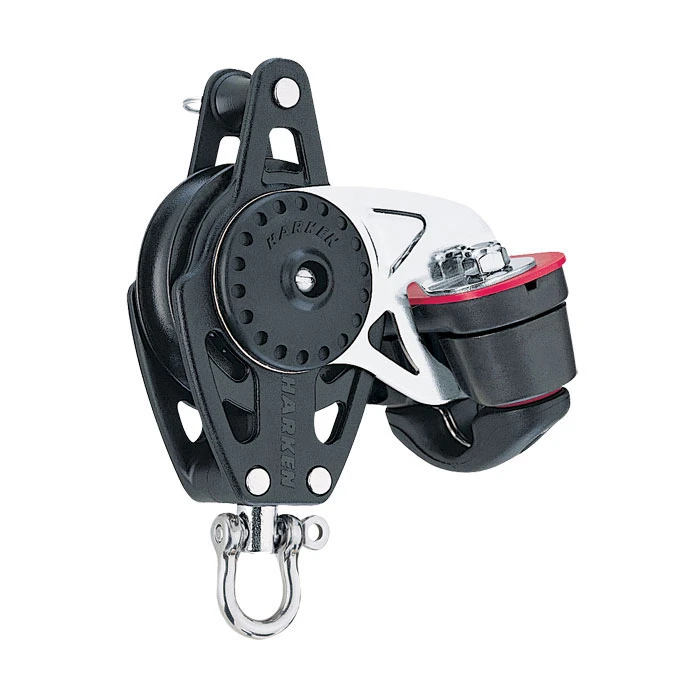

Low-friction Carbo AirBlocks® are lightweight, strong, reliable—and affordable. Companions to the popular Harken® Black Magic® line, these small, compact blocks have very high working loads for safe, easy trimming.
Carbo AirBlocks® are 60% stronger and 30% lighter than our Classic blocks. Use the 40 mm Carbo for jib and mainsheet systems on high-performance dinghies and for loaded control lines on small keelboats.
The nylon-resin sideplates are densely packed with long-glass fibers for a compact block with a high strength-to-weight ratio. Sheaves spin on high-load ball bearings with fitted races for low-friction operation. Ball bearings, sheave, and sideplates are UV-stabilized with carbon black for maximum protection.
Use for:
-
Main/jib sheets
-
Mainsheet fine-tune
-
Control lines
-
Vangs
-
Cunninghams
-
Outhauls
Specifications:
-
Sheave Ø (mm) – 40 mm
-
Length (mm) – 102 mm
-
Weight (g) – 122 g
-
Shackle pin Ø (mm) – 4 mm
-
Maximum line Ø (mm) – 6 mm
-
Maximum working load (kg) – 136 kg
-
Breaking load (kg) – 272 kg
-
Footnote – Maximum working loads and breaking loads for blocks based on cam strengths.
